Sega Master System FM Sound Mod

Posted by Sega Dude on November 14, 2014

Posted in: Hardware, Modifications, Sega Master System. Tagged: fm, golvellius, master system, miracle warriors, psg, sega, sound. 12 Comments

This is my Sega Master System. There are many like it, but this one is mine.
…and it’s about to become unlike most.

It was actually a long time ago when I first discovered etim.net.au and this excellent aftermarket product made by Tim Worthington for the Sega Master System (SMS).
The FM (Frequency Modulation) Sound Unit is something that came stock with every Japanese Sega Master System but not in any other SMS model. What it did was simple; it greatly enhanced the audio quality of the Sega Master System.

The Japanese Sega Master System included a Yamaha YM2413 FM synthesis chip along with the standard PSG sound. Many games, some of which were never even released in Japan, contain extra FM sound and music. Installing this board will add FM sound capability to any Master System, Mark III, Game Gear*, or Mega Drive* game console.
Source

If you have a non-Japanese Sega Master System you’ve been listening to ‘Programmable Sound Generator’ (PSG) music and sound. The difference between PSG and FM sound is very noticeable and for several notable games I find the FM sound to be much better.

You can see (in the images below) by looking at my brand new and still in the package Soldering Iron that I’m new to soldering. This is the biggest reason why it has taken me so long to get around to this mod. Fear.
I have a good condition Sega Master System that works perfectly. There is nothing wrong with it and was so afraid of killing it. There is a distinct point of no return when applying this mod…

This is my Sega Master System

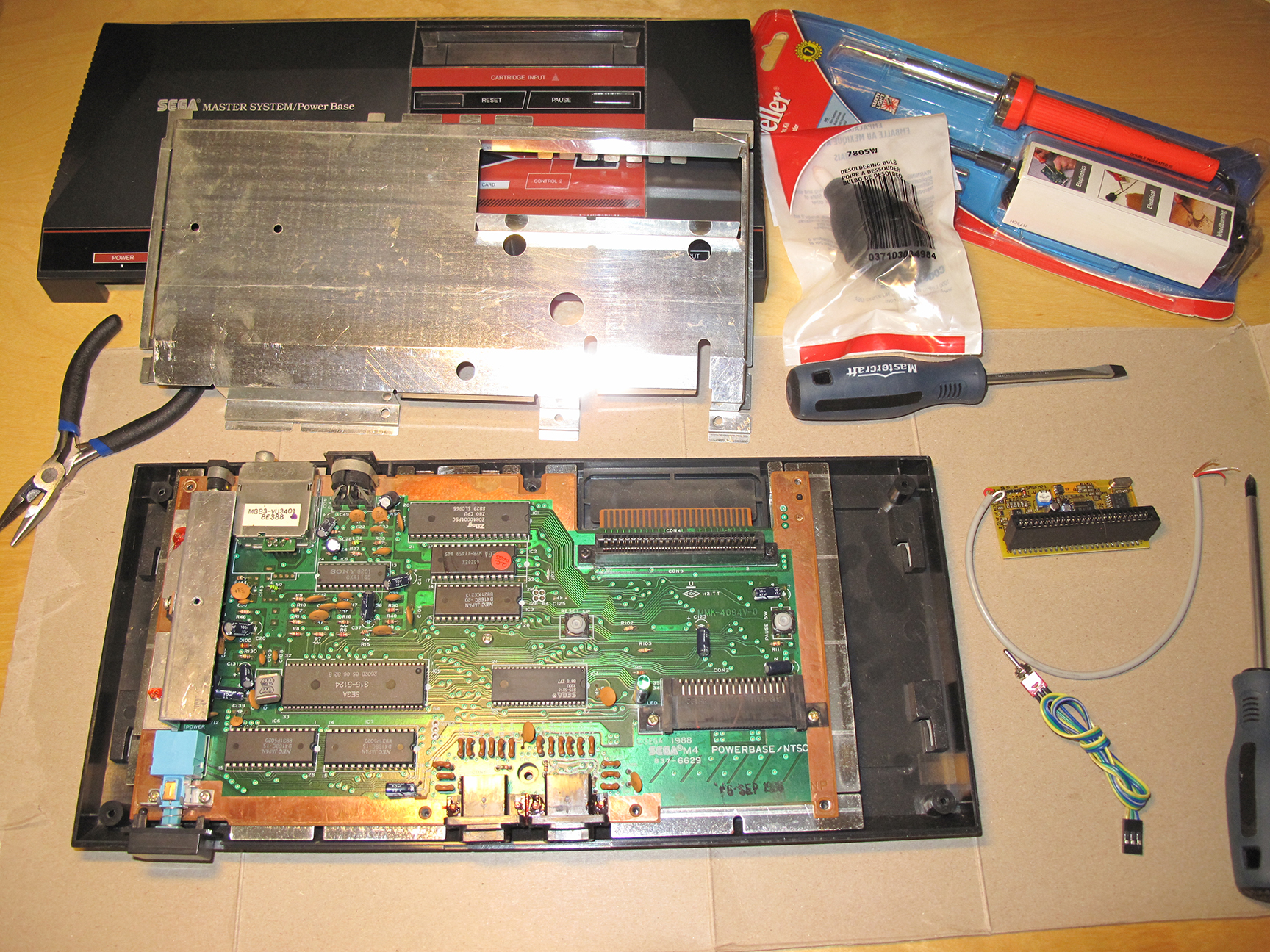

This is my SMS on the Operating Table

The easy part was purchasing this custom made FM Sound unit from etim. For $71 (after shipping) I acquired this small bit of hardware that would transform my NTSC Sega Master System into what it should have always been. And finally making it an equal to it’s Japanese sibling.

From etim I also found instructions for installing the FM Sound Unit. My FM Unit is version 2.1 and my SMS is NSTC so I knew which instructional diagram to reference.
What I didn’t notice was the appended note that stated:
“Note that the diagram below is incorrect, the white/red indicators are swapped around.”

My Sony chip actually showed a different number. But I was still confident that I was in the right area of the Mother Board.

Yeah, you guessed it. I did it wrong the first time around! But as hard as soldering can be for a novice it’s also forgiving and you can undo many mistakes.

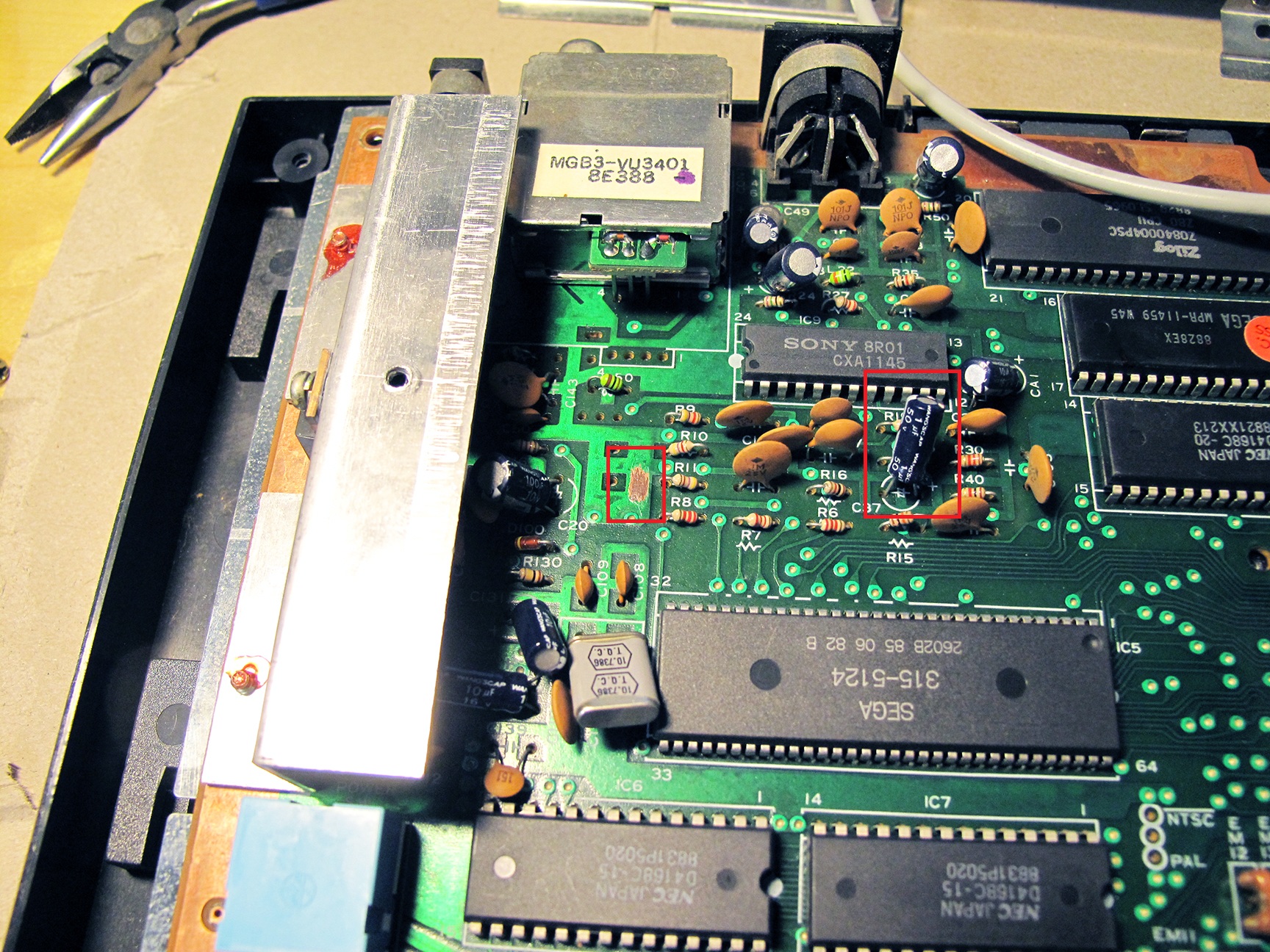

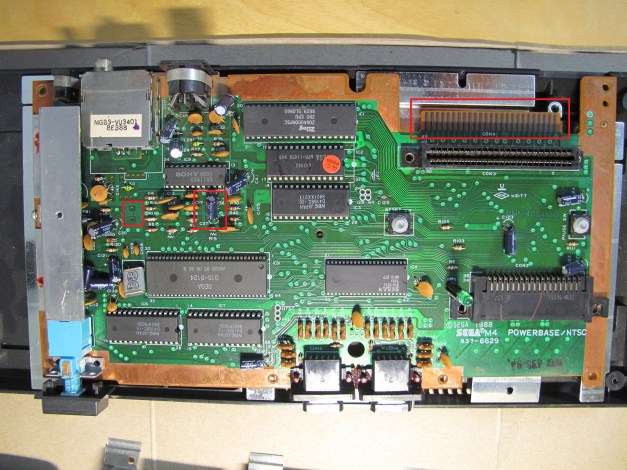

Here’s a close up of my SMS mother board highlighting (in Red) the three areas where the work will be done:

My SMS before the point of no return.

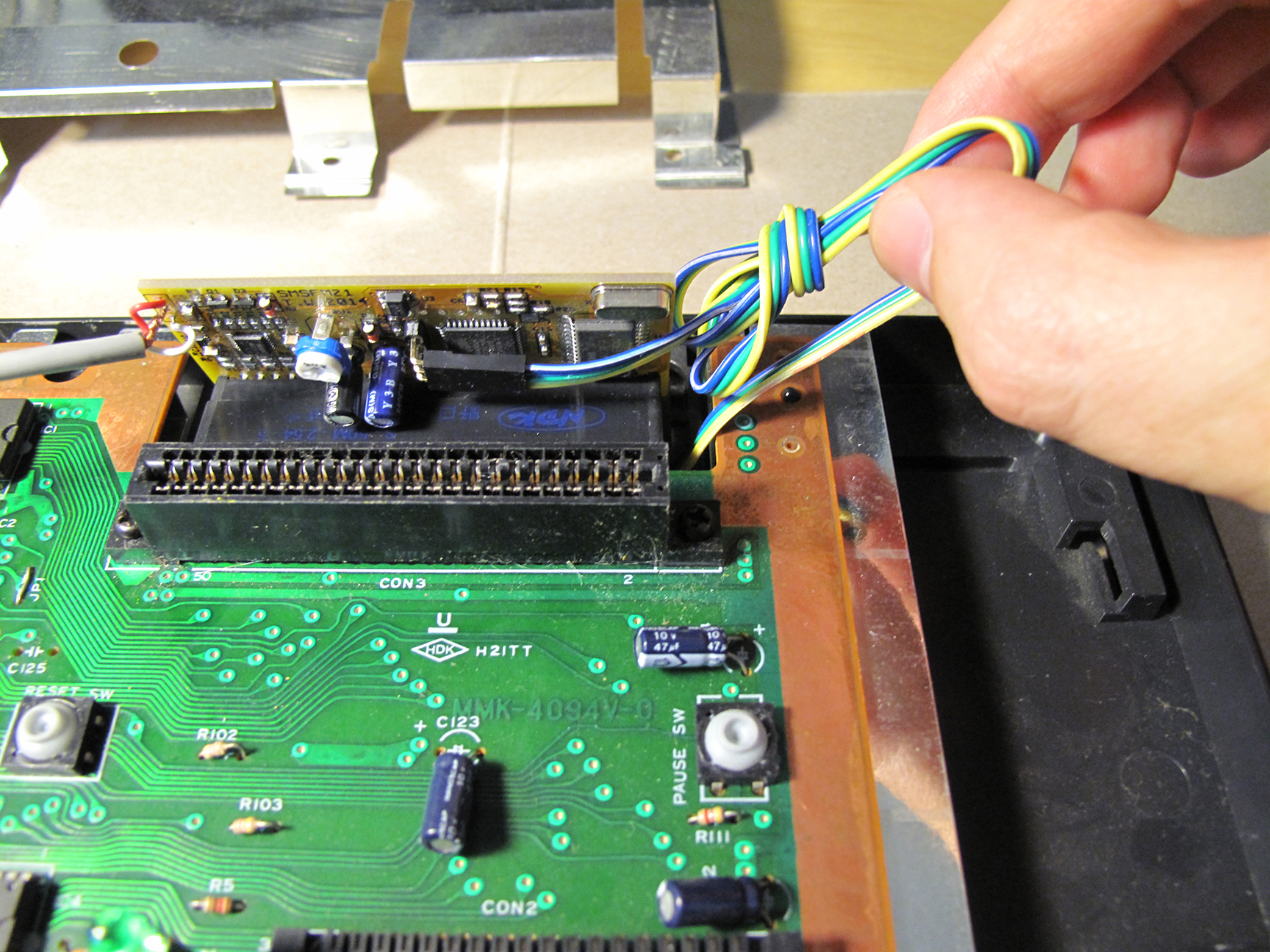

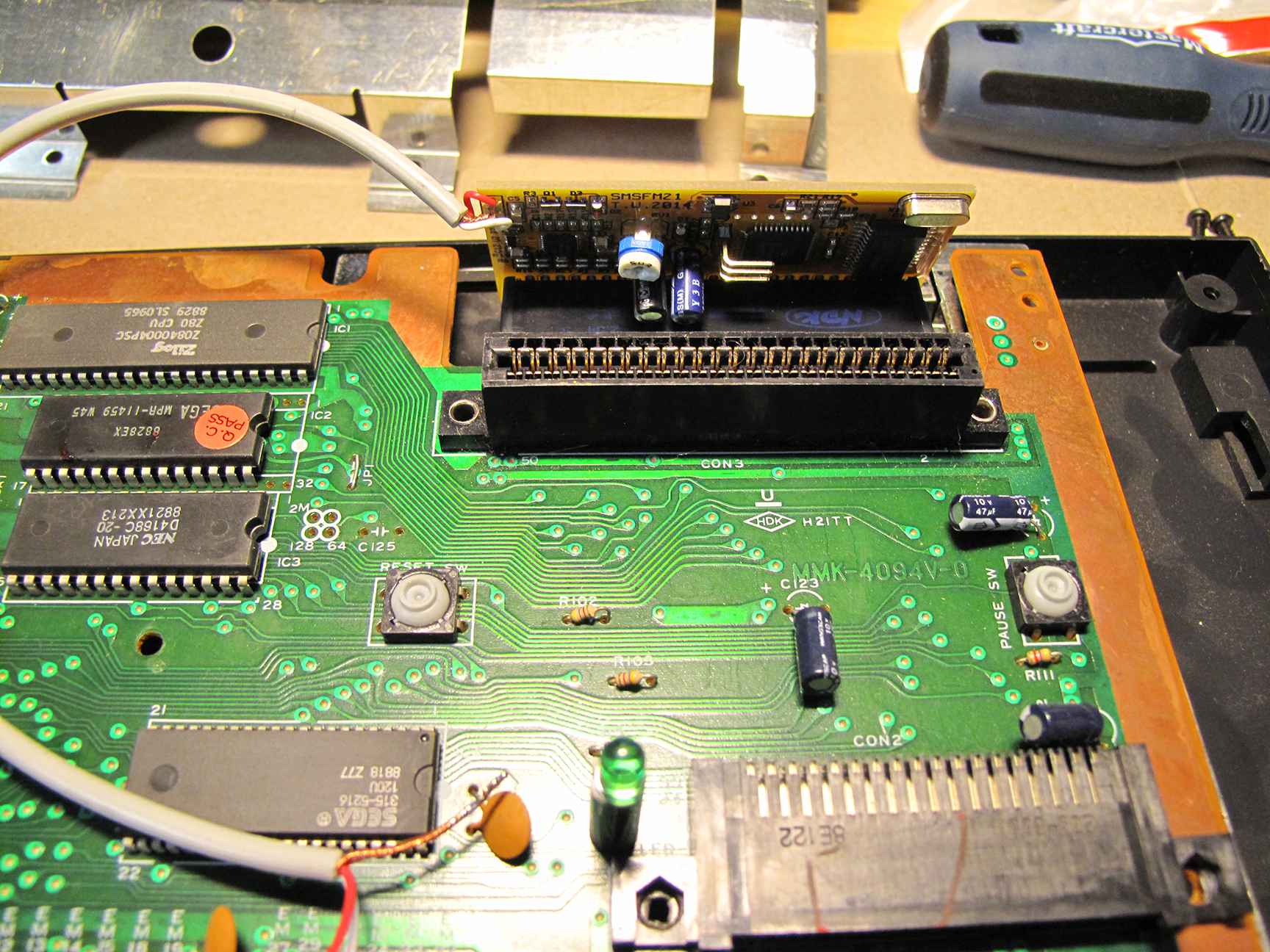

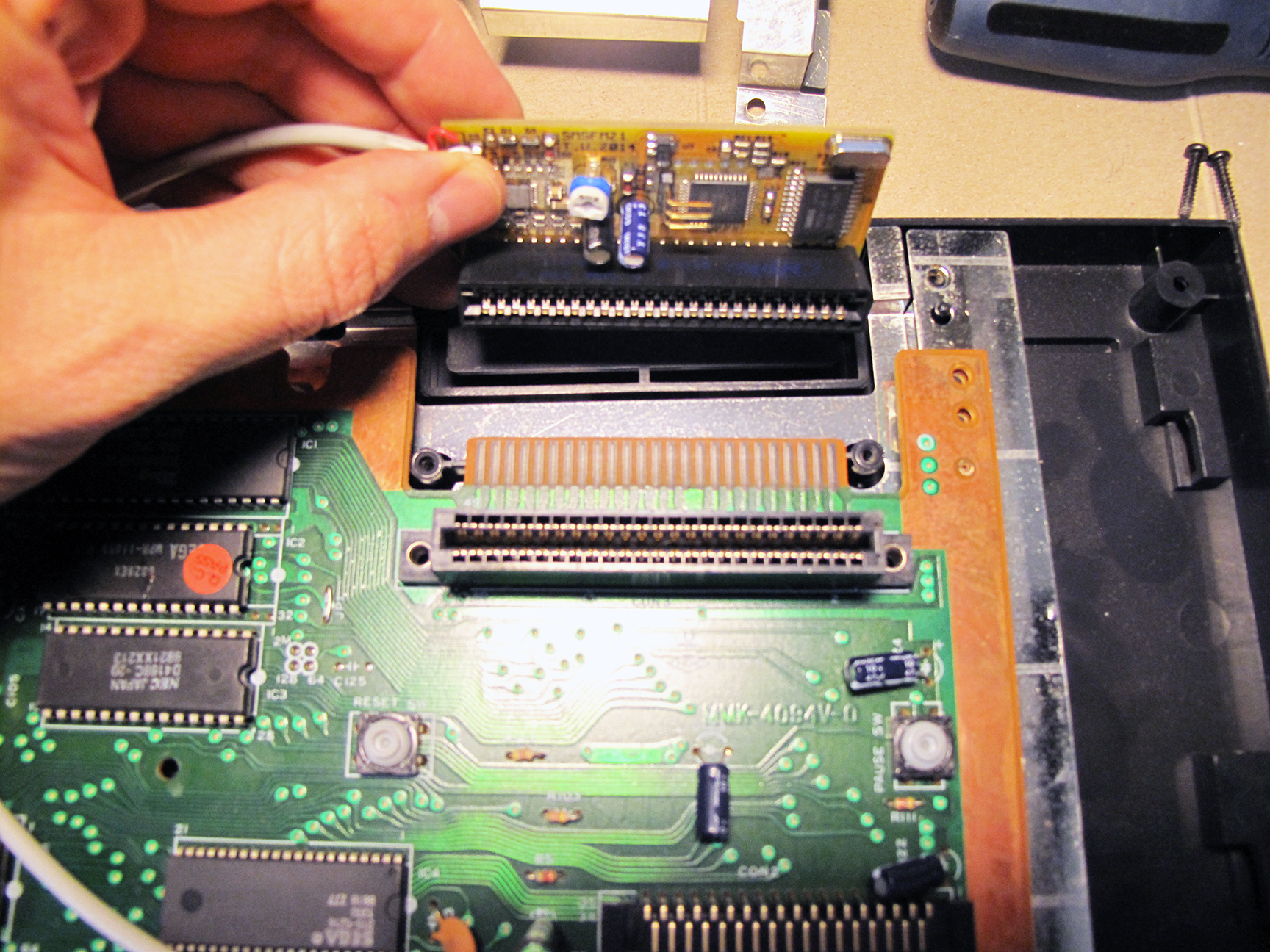

The first step was to install the FM board on the expansion port on the back of the SMS, just behind the cartridge slot. It’s stiff but popped into place very nicely. So far so good!

On the count of 1,2…3!

Installed! …the easy part.

Next I had to prepare three areas on the motherboard for soldering. This involved scratching away some of the green coating on the PCB (Printed Circuit Board) to expose an area to solder the copper ground from the FM unit.
I also had to remove a capacitor. Cutting off the capacitor at C37 was really the scariest moment of this mod. It really felt like the point of no return. Without this capacitor the SMS would still work but there would be no sound. I discovered this when I had my Red and White wires reversed when testing after my first attempt.

Exposed area for Ground. (Left Square)

Cut off capacitor. Replaced with 2 wires.

I really didn’t feel confident about cutting off the blue capacitor that you see in the image above (left). The capacitor stands on two legs and I cut it off leaving both legs behind. I though doing this would make it easier to solder the two FM wires to remaining legs. After reading a bit more about soldering I think I should have removed the legs and soldered my wires directly into the wholes that would have been left behind had I completely removed the legs. I might revisit this someday.

Here’s a zoomed out image of the finished job:

My newly install FM Sound Unit.

The mod comes with a 3-way switch which easily connects to the FM unit. This switch allows you to toggle the FM unit into 3 modes. Original PSG sound, FM Sound and Japanese FM Sound.
Some Master System games (such as Monster World III: The Dragon’s Trap) would only play the games FM sound on Japanese region systems. This switch allows for all options to ensure you’ll get to hear the magic of FM sound for any game that has it.
Note: My NTSC Monster World III did not play FM sound. Some versions of games had their FM sound code removed. I’m going to guess that Monster World III would play FM sound if I used the Japanese cart (with an adapter to make it fit my NTFS SMS). I don’t have an adapter to test this theory.

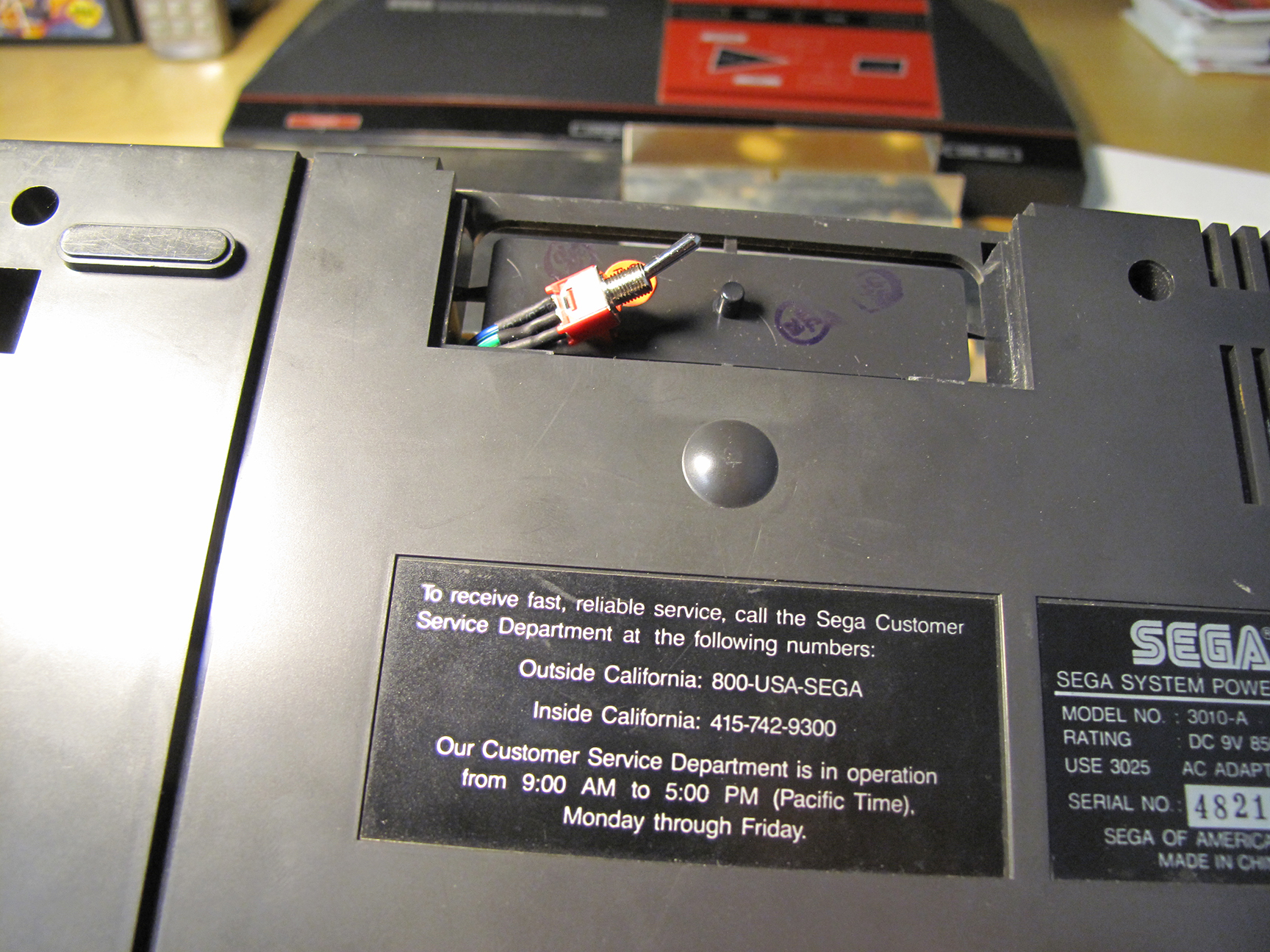

I was concerned about the wire for the 3-way switch getting in the way of a cartridge so I wanted to get it completely out of the way. I wrapped up some of the extra length and left enough to snake the switch down past the mother board and through a hole in the plastic of the case that leads to a small compartment on the bottom side of the Sega Master System. This compartment has a removable cover and it was there to support some add-on that Sega never ended up using. For me this was the perfect place to put the switch. It’s hidden but still accessible without having to take the whole case off the SMS. And I didn’t have to further modify my SMS by cutting holes into it.
The idea was that once I got the cover back on the SMS would look pure and unmodified. I’m not opposed to drilling a clean hole to mount the switch but for now I’m happy with this solution.

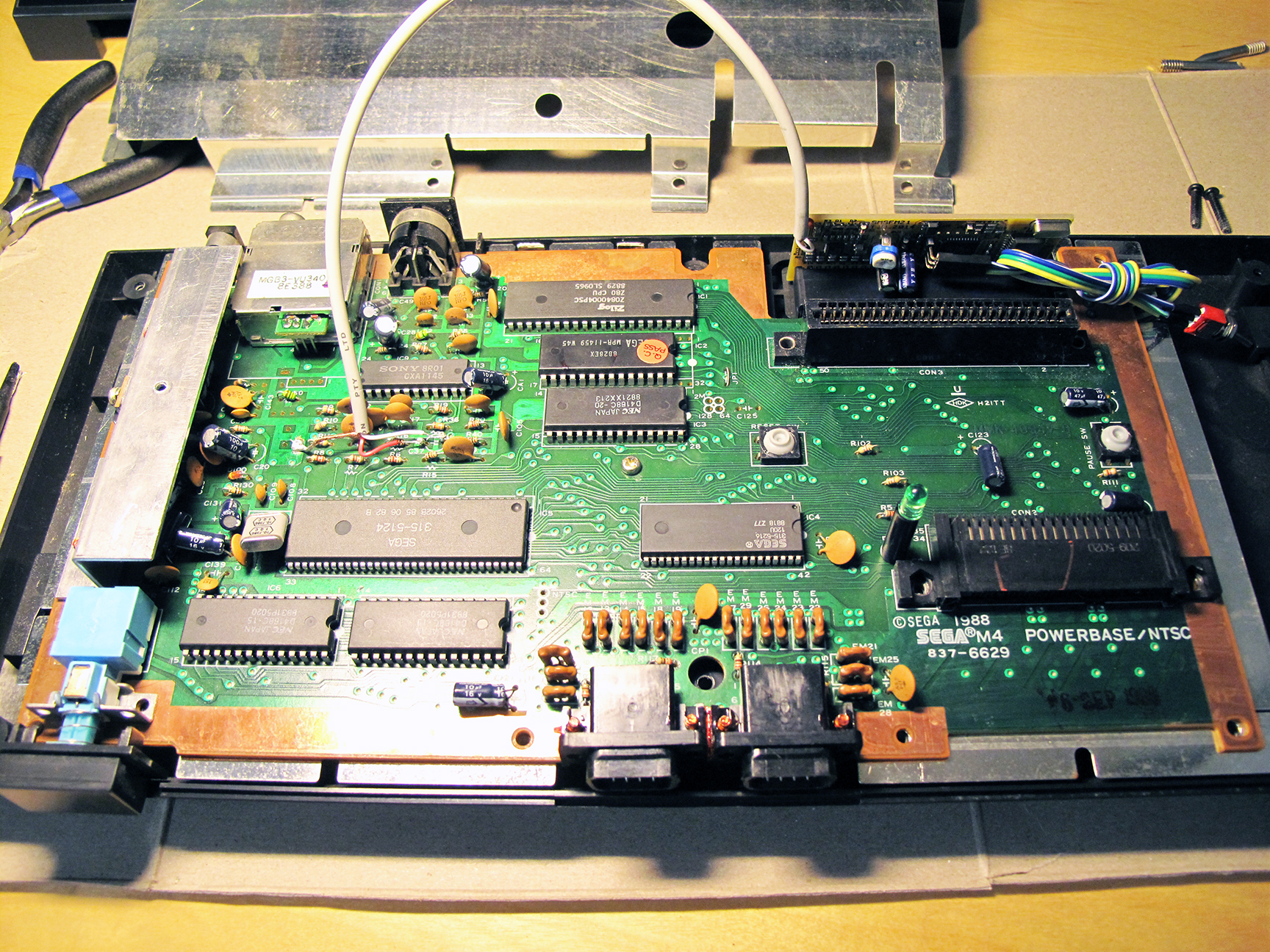

Snaked the wire under the Board and through the plastic casing.

The original cover will still easy fit into place; completely hiding the switch.

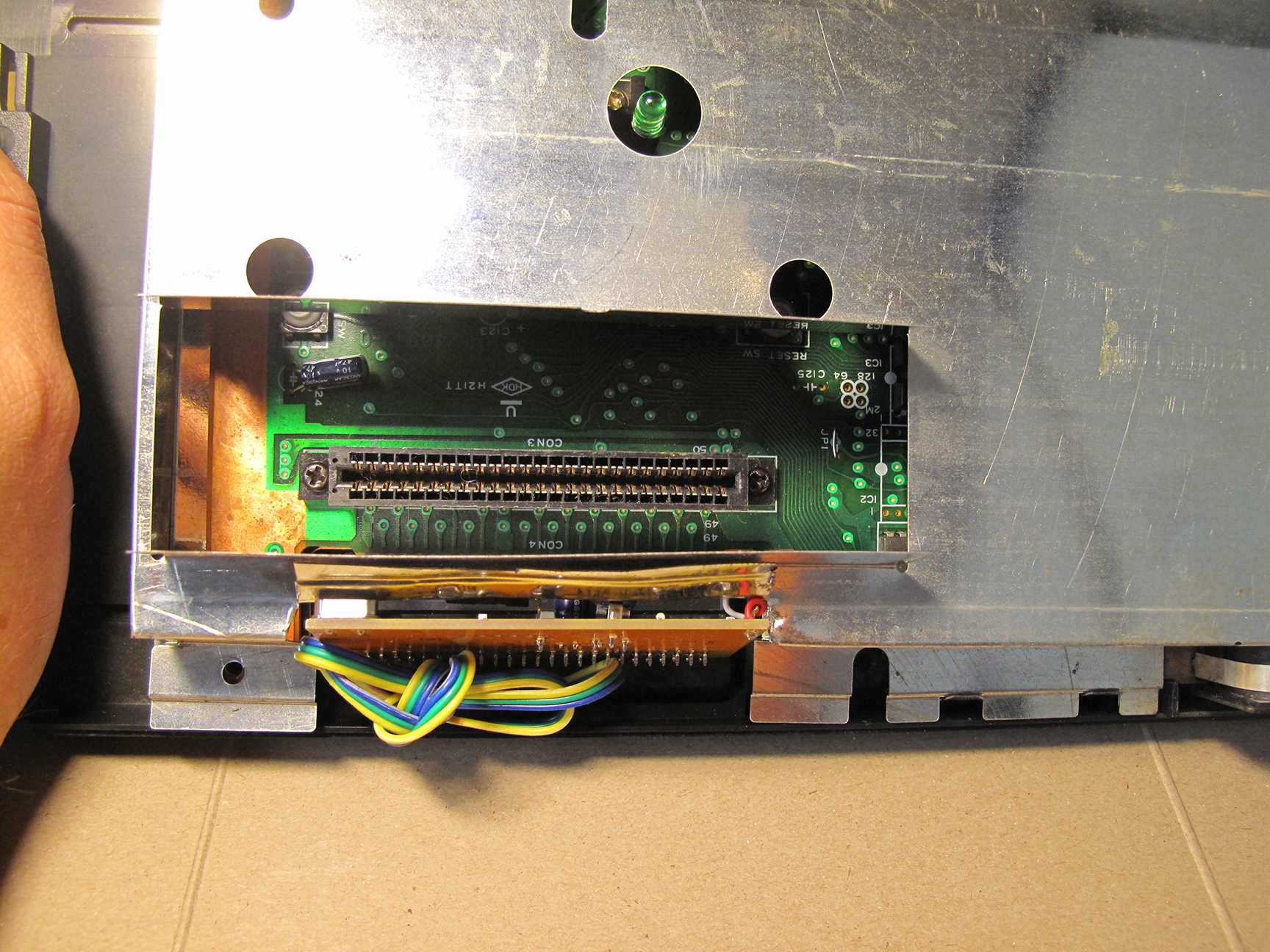

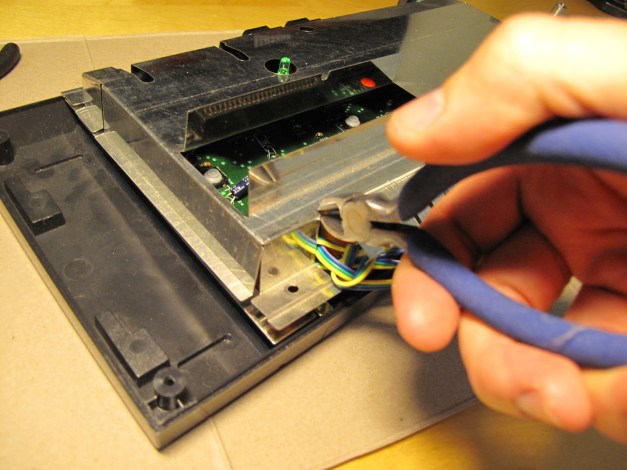

Now it’s time to re-assemble! First put the shield back on… It won’t fit anymore. OK, so my SMS has to endure some more permanent modifications. I cut off all of those metal flaps you see below (left) and folded up the remaining piece so that it was out of the way. The wire cutters you see pictured didn’t work out. I had to switch to full blown tin snips to get the job done.

It wont close!

Time to cut again!

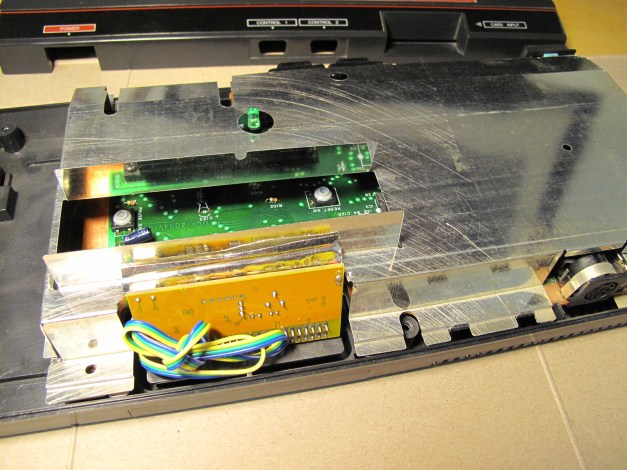

Now the shield fits! And everything is looking pretty clean and tidy.

It fits!

Top down view.

And what do I get for all of this effort?

The two video clips below I made from recording the games Miracle Warriors and Golvellius. For each I let the recording run for a full cycle of each selected tune; stopping the recording before the song looped and started again. I then edited the recordings so that the same tune in FM sound would play right after the PSG version. Making it easy to hear the difference.

For Miracle Warriors I chose to compare the PSG and FM version of: the Title Screen, the Travel/Map Screen, the Castle and Combat/Encounter tunes.
I did pretty much the same thing for Golvellius. Comparing the Title Screen, the Story Intro, Old Lady, Dungeon and Above Ground tunes.

For those of you don’t want to commit to listening to close to 14 minutes of comparisons feel free to skip forward through the videos, sampling as much or as little as you like 🙂

I haven’t yet heard the FM versions of all the games that support FM sound but I’ve heard many and to me Miracle Warriors is one that really stands out. I love the FM version for this game.
And while there is also a distinct difference when listening to Golvellius I found that both the PSG and FM sound were good. I can’t say for certain that I like the FM more than the PSG in this particular example. So as much as I am enjoying the FM sounds the default PSG is also pretty good.

Miracle Warriors PSG vs. FM Sound

Golvellius PSG vs. FM Sound

In the video below you can sample FM sound from several different games that support the feature. I’ve noticed that the good SMS games really benefit from the extra polish of the FM sound track. Giving an extra incentive to revisit some old favorites. But for weaker games (like Rampage, Altered Beast and Afterburner) the FM sound isn’t enough to make them more appealing.

I love the change the FM Sound Unit has brought to my Sega Master System.
The games that I think get the most out of FM Sound are Miracle Warriors, Fantasy Zone 2 and Double Dragon.
Note: I actually really like Phantasy Star with FM sound but the English version does not support FM so I’m not able to try it out first hand. There is a translated version with the FM code but it would take some work to get it on a cartridge.

What do you think? Is FM Sound superior, better, different but equal or worse than PSG?

I have to say after making just three solder joints and having this thing work as expected I felt like a GOD!!
Sure, I didn’t design or make the board and I don’t have a clue as to how it works but I applied heat. And that has to count for something.

I’ve taken my first step into a larger world…

Genesis Mods – Slot Widening

Posted by Sega Dude on July 13, 2012

Posted in: Genesis (North America), Hardware, Mega Drive (Japanese), Modifications. Tagged: cartridge, dremel, genesis, mega drive, modification, sega, slot. 6 Comments

If it wasn’t for the fact that Japanese Sega Mega Drive games are slightly larger than Sega Genesis cartridges most of the Japanese Mega Drive library would be playable on the Sega Genesis. The larger Mega Drive carts just don’t fit into the slot opening of a Genesis.
A lot of games didn’t have any form of region encoding. If a game wasn’t too language dependent (as many are) non-Japanese speaking gamer would have access to games that didn’t get translated. It would also increase your chances of finding a particular title if English (or another non-Japanese language) was not a requirement for you.

I still have my same Genesis that my parents bought me many years ago when it was new. Back then I had the store I bought it from modify it for me. Now as I’m getting into my Sega games again I’m enjoying learning about some of the mods you can perform on the Sega Genesis.
I would say that widening the slot opening to accommodate a larger cart is the simplest mod and well worth doing. The concept is simple. File or shave away plastic from the edge of the cartridge slot opening. My choice of tool for this is the Dremel.

Test Subject

Not Bad. Pretty close to the mark.

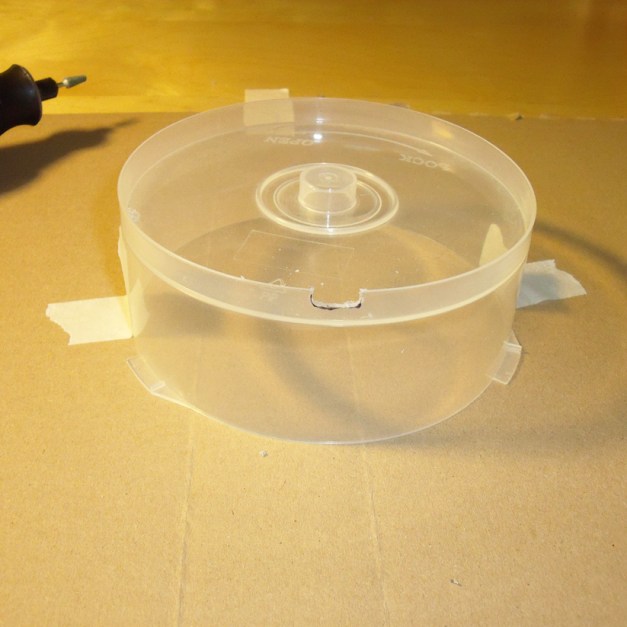

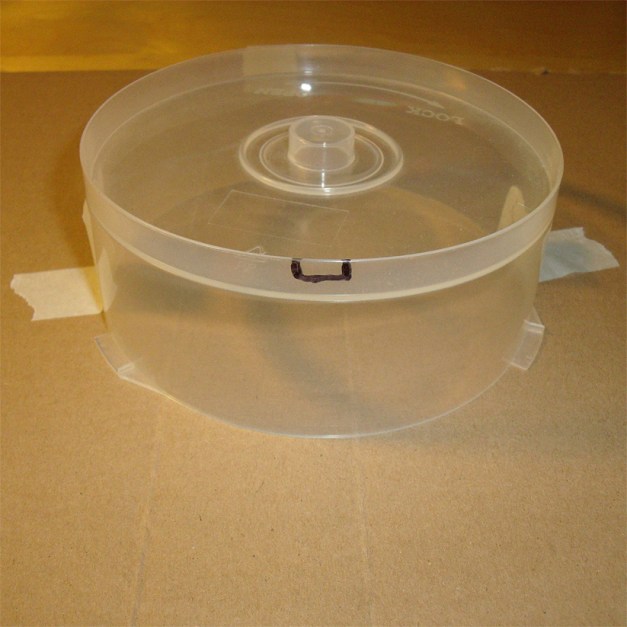

Since I have never used a Dremel before I decided to test it out first. I wanted to get a feel for how it works. I used the plastic cover from a spool of DVD’s as my test subject. I marked off a section that I wanted to cut out… then I cut it out. The Dremel is basically a file that spins. As it spins you press the head against the surface you want to file down and it does just that. It was very easy and quick. I noticed that it was important not to spend too much time on one spot. I was constantly moving the Dremel head along the surface I wanted to remove trying to keep each edge uniform as I worked my way to my black line. After that simple test I was already confident that I could do this.

Nice snug fit.

“Sunsoft!!” Why?!

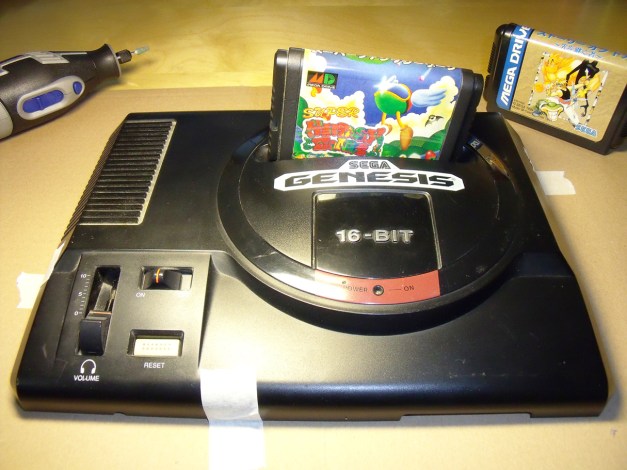

As I said my Genesis had already been modified and it could accommodate most Japanese Mega Drive games already. But there was one company called Sunsoft that used a cartridge that was slightly larger and these carts would not fit into my Genesis.

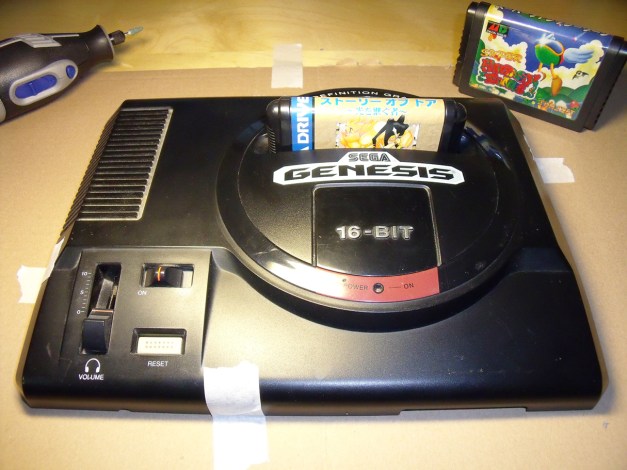

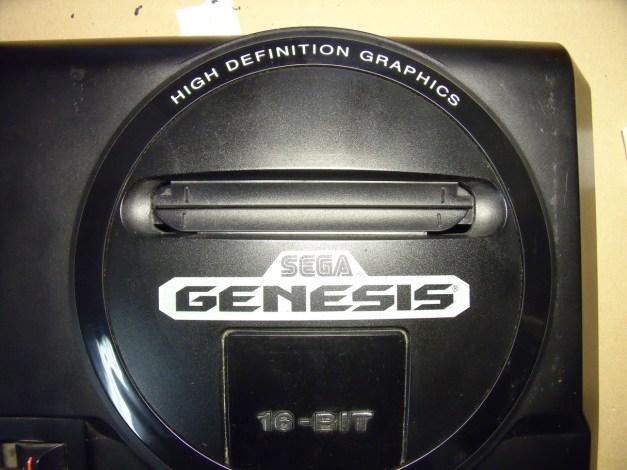

You can see above how a regular Mega Drive carts fits well and how the Sunsoft cart doesn’t fit at all. So there wasn’t much work to do which helps because this is my first attempt.

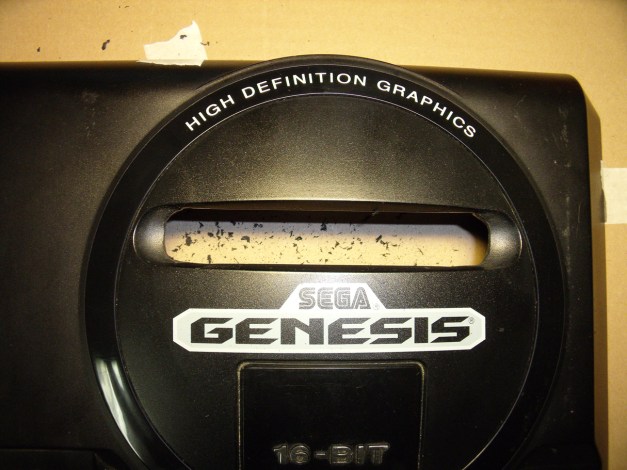

Dremeled

Dust Cover re-Installed

Just like my test on the DVD’s spool cover the Genesis was also easy to Dremel. The plastic was much harder and it took longer but it still was not hard to do. The Sunsoft carts are not much wider but just more square around the corners. So most of my time was spent expanding the four corners of the slot opening.
With the dust cover installed again you can easily see the size difference of the Sunsoft games compared to the Genesis carts.

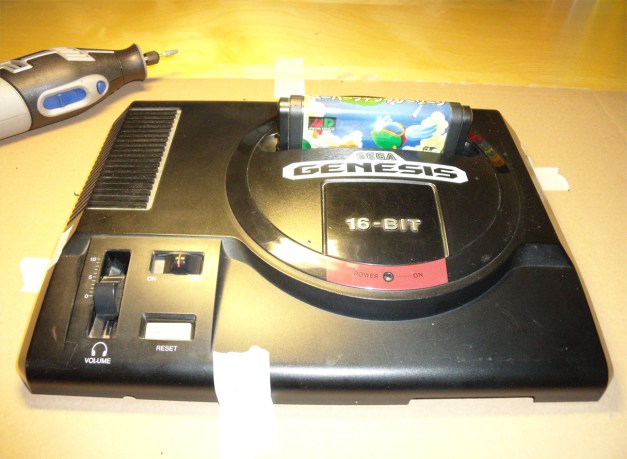

Sunsoft cartridge now fit!

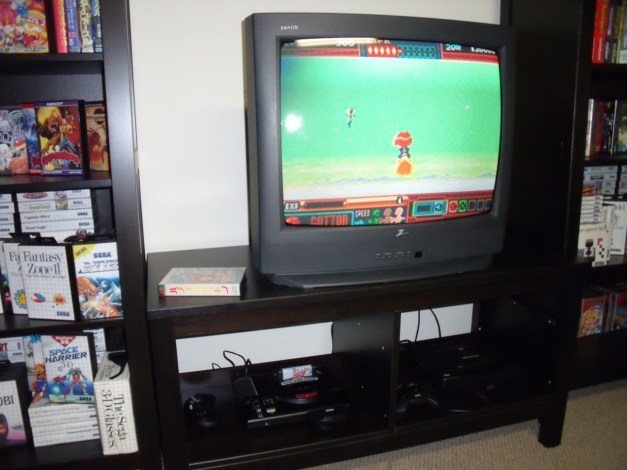

Playing Sunsoft

And here is it. My North American Genesis which can now fit a larger Sunsoft cartridge and any other Japanese Mega Drive carts as well. The second image shows my Genesis playing the Sunsoft game Panorama Cotton. The only mod required was to widen the opening.
I know this will not work for all Japanese Mega Drives games. For Example Golden Axe 3 and Sonic 3 are region locked and will display a message on screen and not load. Click Japanese region locked games for a more complete list.

Genesis Mods – The List

Posted by Sega Dude on June 21, 2012

Posted in: Community, Hardware, Modifications. Tagged: cartridge, genesis, hardware, mod, modification, sega, slot. 4 Comments

For a long while I’ve known about modifications for the Sega Genesis/Mega Drive. There are several very practical things you can do to a Genesis. I’ve kept these ideas at bay because I don’t have any soldering or electrical skills. But despite this I’m slowly starting to warm up to the idea. This first step is a simple one. I’m going to create a list of the mods I would like to have on a Genesis.

The simplest mod for a Sega Genesis is to widen the cartridge slot so that you can insert Japanese Mega Drive games. For anyone who can’t stand of the idea of cutting into their Genesis then the story might end right here.
But for me I have several Genesis consoles and my original system is already modded. My original modded Genesis slot has been widened and regular Japanese Mega Drive games can fit into it. However, those fat Sun Soft cartridges cannot. Not even close. So the plan is to buy a dremel and expand my Genesis slot enough to fit what I believe to be the largest cartridge created for the system.

Here’s TheDamoMonster who does a great job showing us how this is done.

So what do you get for your efforts? You get a Genesis that can accommodate the larger size of the Japanese Mega Drive games. And with the exception of about 62 games that have region locks built into them you’ll be able to play all other Japanese Mega Drive games on your Genesis.

Thanks to markvergeer who put together a list of 62 games that have region locking encoded on them. These games will run only on systems that match the intended region of that cart.

Twenty one of these games were made in 1992 and 1993. The remaining forty two games where made in 1994 or later. Considering the size of the Genesis/Mega Drive game library the amount of region locked games is thankfully pretty small.

Now, back to my mod wish list. And of course we already know number on the list:

1) Widen Genesis cartridge slot to accommodate the largest Japanese Mega Drive Sun Soft carts.
2) Install Region/Language switches.
3) Install composite Video and Audio jacks.
4) Over clock the Genesis.

The region and language mods will ensure we’ll be able to play all games and possibly see first hand the difference in some games that vary from region to region.
Installing composite jacks will hopefully profide the best audio and visual experience you can have on the Genesis. I believe SCART is a better option available to PAL regions.
I only read about over clocking the Genesis recently and it’s something that will only be noticeable in a few scenarios; such as in Sonic split screen mode or when Sonic loose 100+ rings and the system really slows down when trying to draw all those sprites! I’m sure there are other good example of games that could use a little more horse power but you get the idea 🙂

OK, I’m going to need some tools…
